Square Slot Tube

Hot selling 304 316 Stainless Steel Square slotted pipe for Handrail Railing Top Rail

Content ID：87
Shelf time：2022-08-07 14:51:38
Product description: Hot selling 304 316 Stainless Steel Square slotted pipe for Handrail Railing Top Rail
INQUIRY EMAIL

The most different quality square slot tube

you've ever purchased !

Stainless Steel Square slotted pipe
▲ 304/316L/2205 Grade

High stability and high corrosion resistance.

Stainless Steel Square slotted pipe

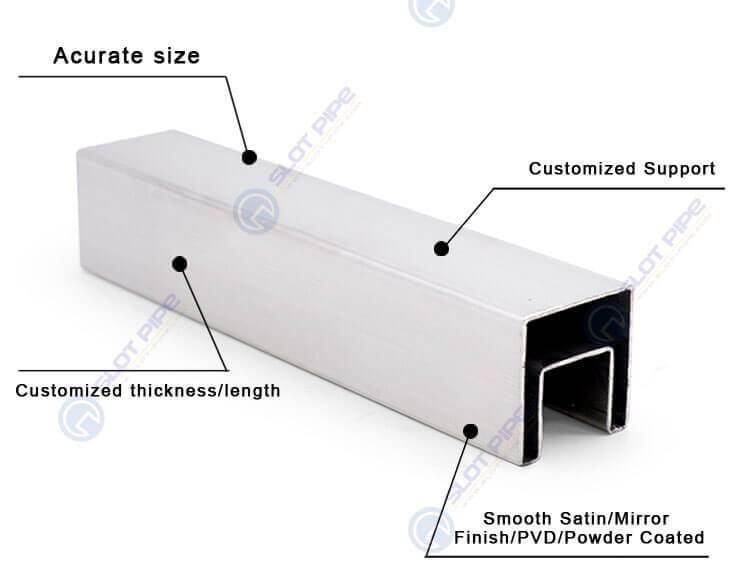

▲ Single Slot Square

Stainless Steel Square slotted pipe

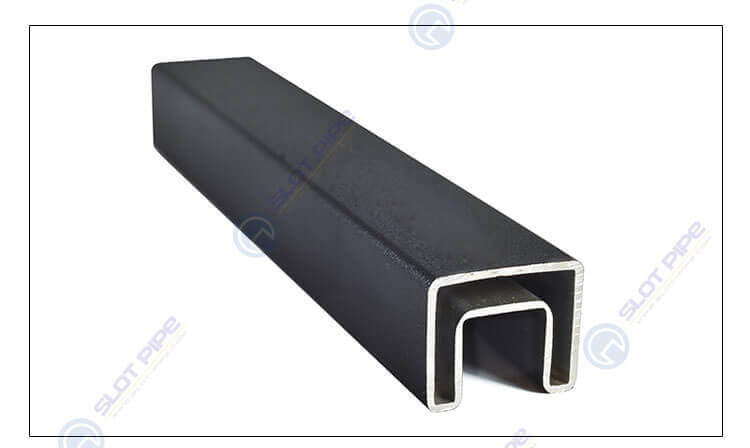

▲ Powder Coated(Matt Black)

Stainless Steel Square slotted pipe

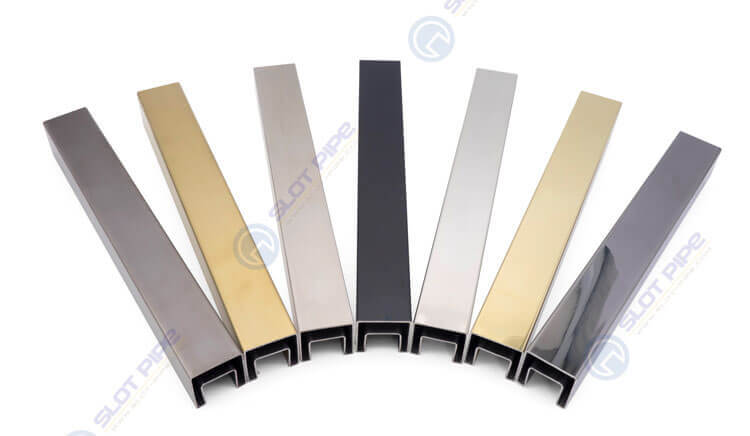

▲ PVD/Powder Coated

Stainless Steel Square slotted pipe

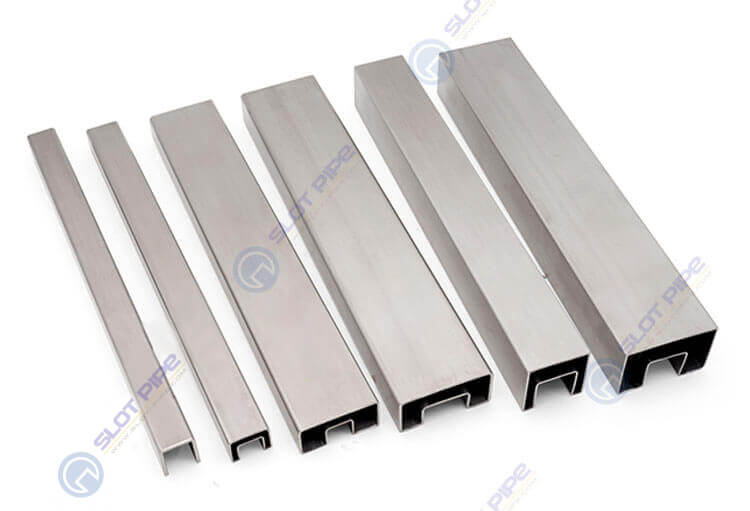

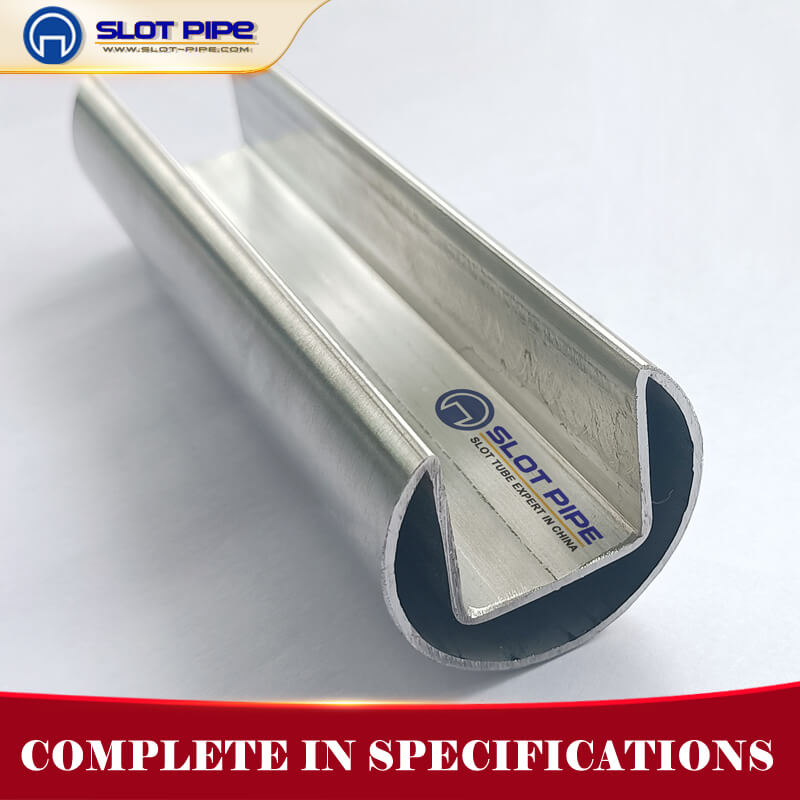

▲ Complete in specifications

The most different quality slotted tube you've ever purchased !
Stainless Steel Square Slot Tube Dimensions
Usage:Airport,subway station,shopping mall,building,hotel,villa,handrail glass system.
Grade 304：Indoor Grade 316L 2205: Outdoor/Seaside
Item	Accurate Size/Roll forming	OD(mm)	Slot（mm)【W*H】	Thickness(mm)	Length(mm)
1	Single Groove Square	25*21	14*14	1.0mm-2.0mm	5.8M/6M/ Customized
2		25.4*21	14*14
3		28.3*25.4	15*15
4		30*30	15*15
5		40*30	24*24
6		40*40	15*15
7		40*40	20*20
8		40*40	24*24
9		50*25	15*15
10		50*50	15*15
11		50*50	20*20
12		50*50	25*25
13		60*30	28*15
14		60*40	15*15
15		60*40	20*20
16		60*40	24*24
17		60*60	25*25
18		75*45	25*25

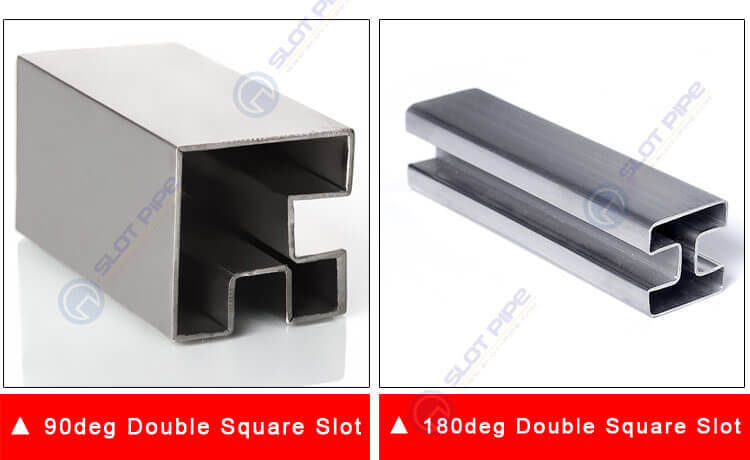

19	Double Groove Square 180deg	40*40	15*15
20		50*50	15*15
21		50*50	20*20

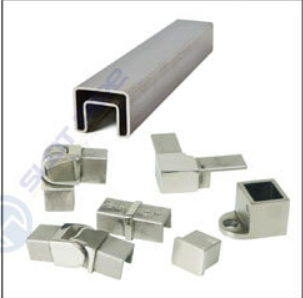

▲ One stop service for slot tube and relevant fitting
Stainless Steel Square slotted pipe

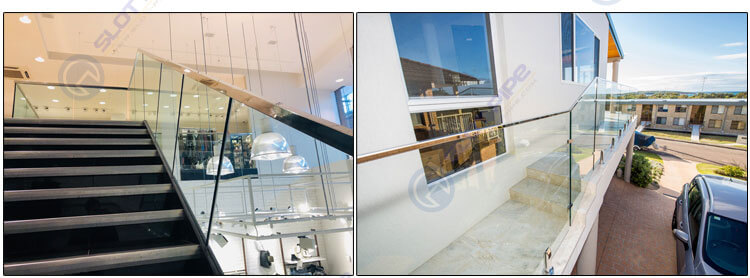

▲ our slot tubes and fittings can make your glass balustrade
